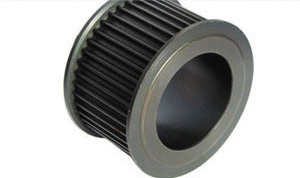

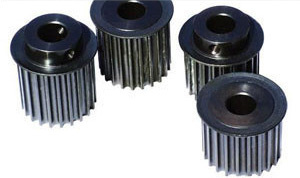

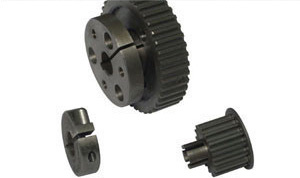

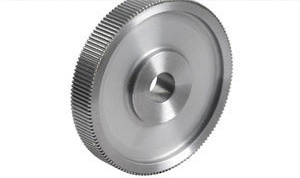

RPP/YU/GT synchronous pulley
-
RPP/YU/GTSynchronous pulley Category: RPP2M type, RPP3M type, RPP5M type, RPP8M type, RPP14M type, 8YU type, 1.5GT type, 2GT type, 3GT type, 5GT type, 8GT type
RPP/YU/GTSynchronous pulley Raw materials: Generally made of steel, aluminum alloy, cast iron, brass, and other materials. The inner hole has round hole, D-shaped hole, conical hole and other forms.
RPP/YU/GTSynchronous pulley surface treatment: Natural oxidation, blackening, zinc plating, color zinc plating, high frequency quenching and other treatment. Accuracy level depends on customer requirements.
1, the RPP/YU/GTSynchronous pulley produced by our factory is not only for the RPP/YU/GT synchronous belt of the localization equipment, but also can replace the imported RPP/YU/GTSynchronous pulley.
2, user customized RPP/YU/GTSynchronous pulley, please provide pulley drawings (you do not need to draw the tooth shape size of the pulley in the drawing), our factory can also draw pulley drawings according to the specifications provided by the user, the inner hole of the pulley, the keyway, the width and other dimensions for the user.
3, our factory RPP/YU/GT Synchronous pulley can be processed according to user needs, and our factory can also develop drawings for users.
Presentation method Code Material Surface treatment
LYA Aluminum alloy Natural anodizing LYZ Hard oxidation LYH Do not process LYY 45# steel Blackening treatment LYD Galvanizing LYM Do not process
Standard keyway size table (dH7: indicates inner hole size; bJS9: indicates the keyway width; t tolerance: keyway depth Model dH7 bJS9 t tolerance Model dH7 bJS9 t tolerance Model dH7 bJS9 t tolerance N8 8 +0.015
03 ±0.0125 1.4 +0.1
0N23 23 +0.021
08 ±0.018 3.3 +0.2
0N38 38 +0.025
010 ±0.018 3.3 +0.2
0N10 10 N24 24 N39 39 12 ±0.0215 NK10 10 +0.018
04 ±0.015 1.8 N25 25 N40 40 N11 11 N26 26 N41 41 N12 12 2.3 N27 27 N42 42 N13 13 N28 28 N43 43 N14 14 5 N29 29 N44 44 N15 15 N30 30 N45 45 14 3.8 N16 16 N31 31 N46 46 N17 17 N32 32 +0.025
010 N47 47 N18 18 6 2.8 N33 33 N48 48 N19 19 +0.021
0N34 34 N49 49 N20 20 N35 35 N50 50 N21 21 N36 35 N22 22 N37 37 Note: when the shaft hole is 10, the keyway width is 4.0MM, and the keyway depth is 1.8MM, the shaft hole is indicated by NK10 Model Pitch Pb Slot width S Tooth height hg P3M 3.00 2.00 1.09 P5M 5.00 3.32 1.81 P8M 8.00 5.35 2.90 8YU 8.00 3.02
